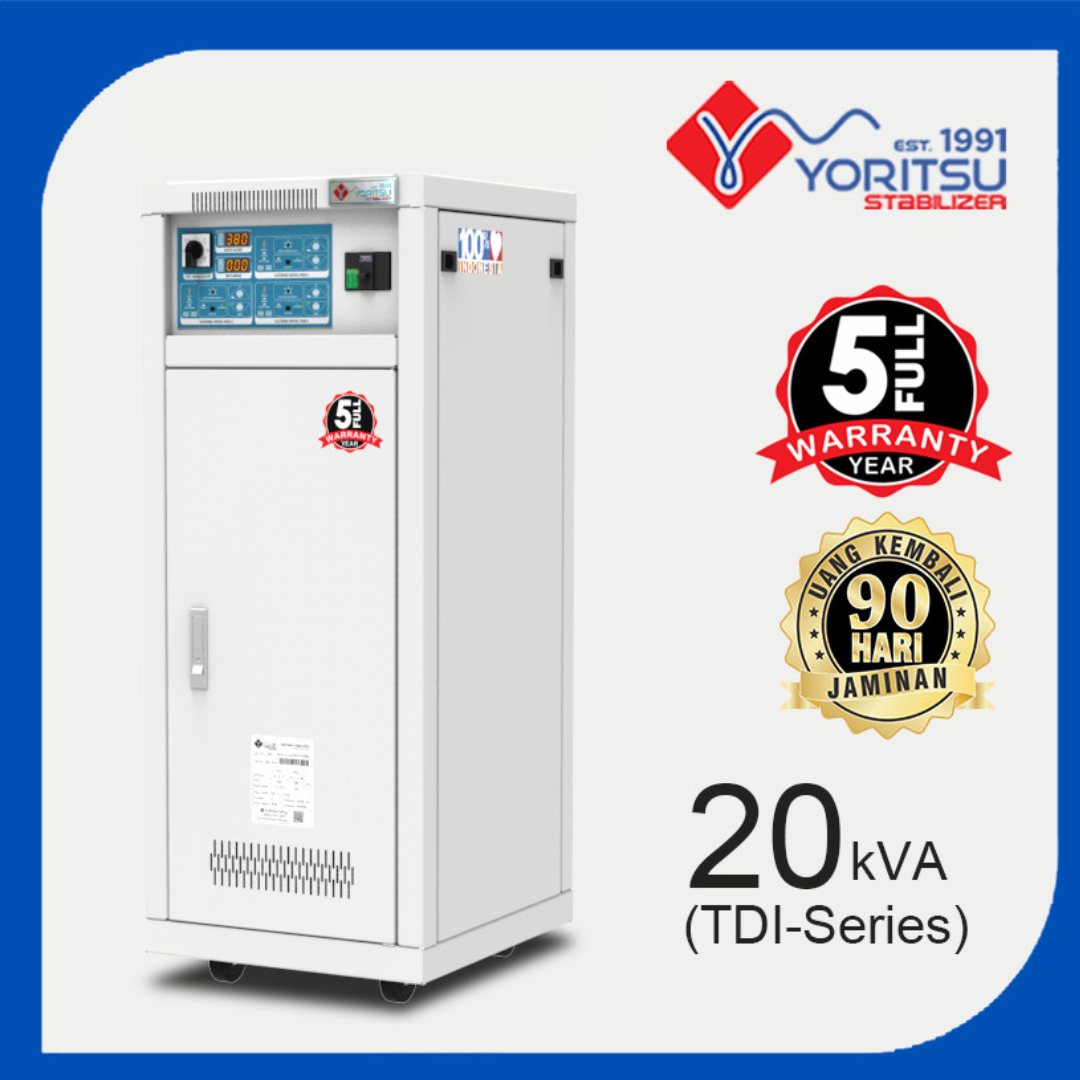

Yoritsu Stabilizer Listrik Mono Display TDi-20-1
Yoritsu Stabilizer Listrik Mono Display TDi-20-2
Yoritsu
Yoritsu Stabilizer Listrik Mono Display TDi-20
Yoritsu Stabilizer TDi Mono Display 3 Phase

Description

AI-Powered Smart Control Menyesuaikan output tegangan secara otomatis berdasarkan kondisi input, beban, dan pola penggunaan.

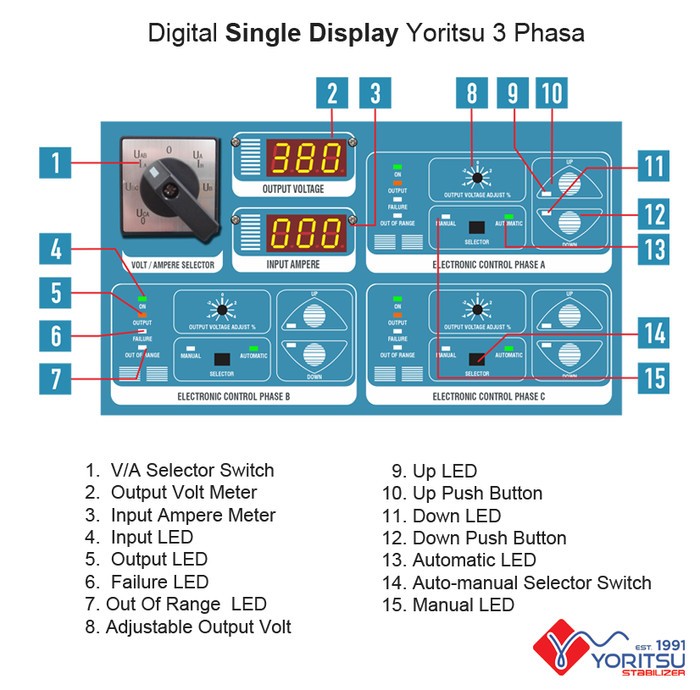

NEW Innovation Stabilizer Yoritsu Single-Display memberikan kemudahan Visual dan pengecekan parameter voltasi dan arus di sisi Input dan Output. Selector Switch V/A hasil in-house design yoritsu yang ingenious bisa menampilkan voltasi dan arus bersamaan. SS V/A Yoritsu cukup 1x Putar maka phase-netral : 220v L1-N/L2-N/L3-N dan phase-phase 380v : L1-L2/L1-L3/L2-L3 akan tampil bersamaan dengan nilai Arus nya. TECHNICAL SPECIFICATION
  1. Type : TDI-20
  2. Capacity : 20 KVA
  3. Input : 160-240V / 278-415V
  4. Output : 220V /380V
  5. Phase : 3
  6. Frequency : 45 - 60 Hz
  7. Accuracy Output : Adjustable 1%, 2%, 3%, 4%
  8. Display Output : Reliable Volt Digital / Ampere Digital
  9. Control System : Advance PCB, 24V DC Servo Motor Tzukasa, Japan
  10. Respond Time : Within 1 second against 10% input voltage deviation
  11. Temperature Rise : 75 derajat celcius at output 220V
  12. Cooling System : No Fan required, Convention Cooled
  13. Efficiency : Better than 98%
  14. Dielectric Strength : 3000V for 1 min
  15. Dimension : D x W x H = 650 x 550 x 1280 mm
Optional :
  • Undervoltage warning; buzzer & led indicator
  • Overvoltage warning; buzzer & led indicator
  • Over temperature warning; buzzer & led indicator
  • Over current warning; buzzer & led indicator
BROCHURE
