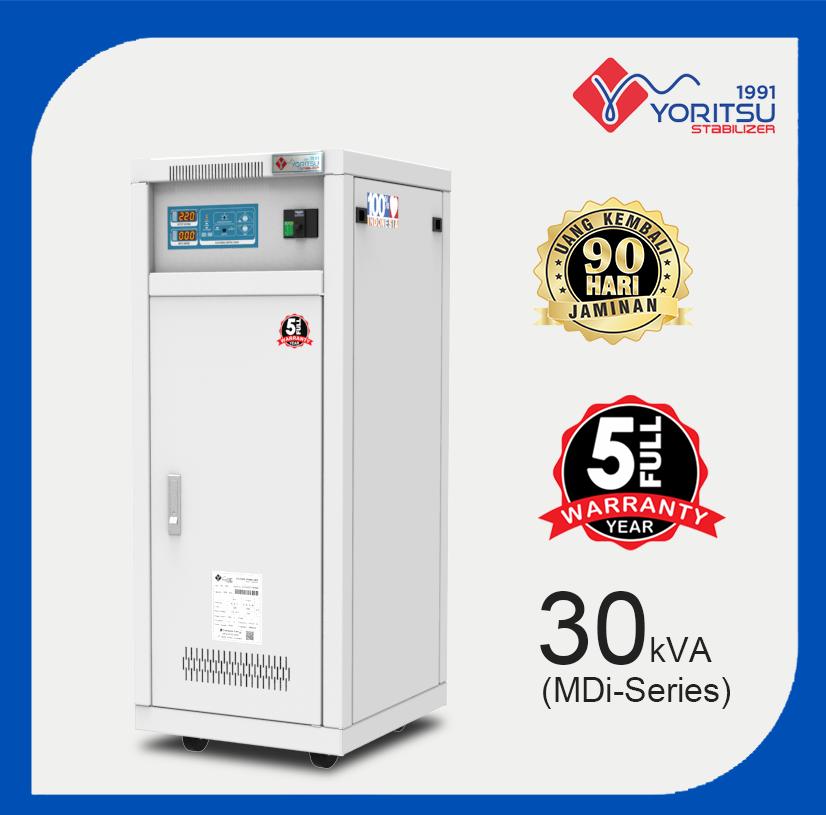

Yoritsu Voltage Stabilizer MDi-30
Description
AI-Powered Smart Control Menyesuaikan output tegangan secara otomatis berdasarkan kondisi input, beban, dan pola penggunaan.

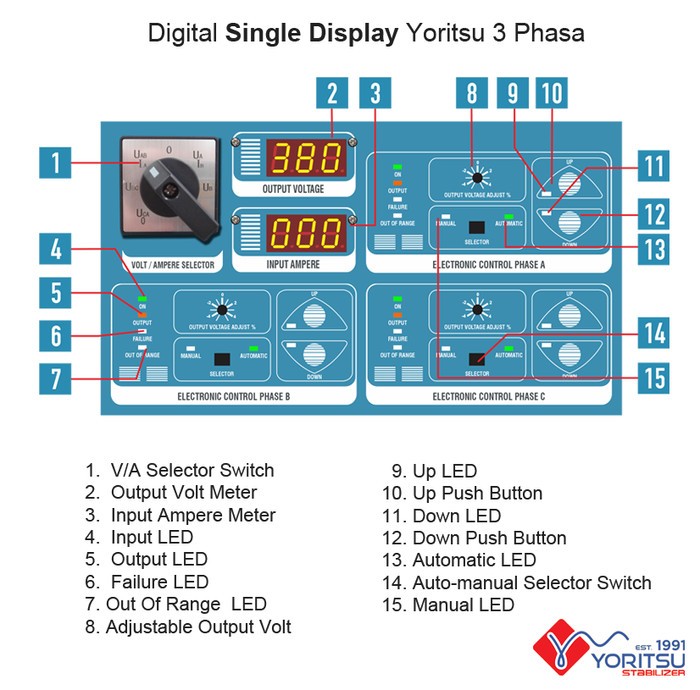

NEW Innovation Stabilizer Yoritsu Single-Display memberikan kemudahan Visual dan pengecekan parameter voltasi dan arus di sisi Input dan Output. Selector Switch V/A hasil in-house design yoritsu yang ingenious bisa menampilkan voltasi dan arus bersamaan. SS V/A Yoritsu cukup 1x Putar maka phase-netral : 220v L1-N/L2-N/L3-N dan phase-phase 380v : L1-L2/L1-L3/L2-L3 akan tampil bersamaan dengan nilai Arus nya.
TECHNICAL SPESIFICATION
- Type : MDI-30
- Capacity : 30 KVA
- Input : 160 - 240V
- Output : 220V
- Phase : 1
- Frequency : 45 - 60 Hz
- Accuracy Output : Adjustable 1%, 2%, 3%, 4%
- Display Output : Reliable Volt Digital / Ampere Digital
- Control System : Advance PCB, 220V AC Servo Motor Panasonic
- Respond Time : Within 1 second against 10% input voltage deviation
- Temperature Control : 75 derajat celcius at output 220V
- Cooling System : No Fan required, Convention Cooled
- Efficiency : Better than 98%
- Dielectric Strength : 3000V for 1 min
- Dimension : D x W x H = 500 x 450 x 1100
- Undervoltage warning; buzzer & led indicator
- Overvoltage warning; buzzer & led indicator
- Over temperature warning; buzzer & led indicator
- Over current warning; buzzer & led indicator
